2019 FVDI J2534 User Manual

2019 FLY FVDI J2534 Professional Tech Support:
What is FVDI J2534
What’s the FVDI J2534 interior look
FVDI j2534 vs VCM2 SP177-C1
FVDI J2534 software download
How to position in FVDI J2534 on Windows 7
What protocols and automobiles will also be supported

In part…

What is FVDI J2534:
SAE J2534 is an bizarre for communications between a computer and a car. Government regulations require all automakers provide a J2534 provider to everyone inside the U.S. for re-flashing emissions related controllers. FVDI J2534 is one of those SAE J2534 Pass-Thru utility that you’ll be able to re-flash and, in some instances, diagnose automobiles with production unit capacity.
2019 FVDI J2534 is the latest FVDI interface that may artwork with J2534 software, along side Ford/Mazda IDS, Honda/Acura HDS, Toyota/Lexus/Scion Techstream, JLR SDD, Nissan/Infiniti Consult 3, Consult 3 plus, Consult 4, and FVDI 2019, FVDI 2019, VVDI2 software, Tango key programming software.
NOW, FVDI J2534 is confirmed to artwork with Honda HDS, Ford IDS and Toyota Techstream.
BUT, the other is being tested! FVDI J2534 will artwork with additional J2534-based automobiles!

 Whats the FVDI J2534 interior look:
FVDI J2534 PCB display

FVDI j2534 vs VCM2 SP177-C1:

Function/ToolFVDI J2534Ford VCM IINotes
Auto startup without licenseYes
No virtual system sought afterYesYes
Online programmingYesYes
Online PATS/RKE studyingYesYes
SAE j1850 PWM 83.3K baud rateYesYes
PEPS 18V programming voltageYesYes
PEPS 5-20V adjustable voltageYesYes
EEC-V greater than one items data loggerYesYesMY1994-2000 Ford
PTEC greater than one items data loggerYesYesMY2000-2006 Ford
SAE J1850 module programmingYesMY1995-2006 Ford
Power balance potency take a look atYesYesMY1995-2006 Ford
CANBUS module programmingYesYesMY2006-2019 Ford
Online software changeYesKeep software newest
Free incode calculation for pre-2019 automobilesYes

 provide: http://blog.obdexpress.co.uk/2019/08/28/fvdi-j2534-vs-ford-vcm-2/

 Where to acquire FVDI J2534 software:
You can download FVDI j2534 software http://flyobd.com/retailer/download-center/ and FVDI J2534 software from the CD comes with the packet

 Again, FVDI J2534 now might be confirmed to simply artwork with Honda HDS, Ford IDS and Toyota Techstream.

How to position in FVDI J2534 on Windows 7:
FVDI J2534 arrange requirement:

 Works smartly on Windows 7 64 bits! Tested!

FVDI J2534 Ford IDS software arrange tutorials:
Two steps… then carried out!
Install FVDI J2534 get began software, then arrange the original car software
Note: the applying arrange are not required arrange assortment.
IMPORTANT:
The software cannot be installed within the identical computer
If you want to use the ones software with the FVDI J2534 equipment, please arrange different software on different laptop programs.

Step 1: download FVDI J2534 equipment software from compact disc(CD) l
Put the CD inside the computer CD force l
Wait for a while previous than opening the CD inside the helpful useful resource manager,you’ll be able to see the equipment related software and belongings.

 Step 2: download FVDI J2534 equipment software from the first rate web site download link l
Go to http://flyobd.com/retailer/download-center/
Please take a look at in and log in l

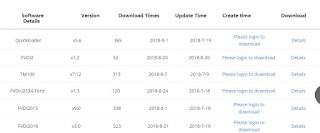

Download FVDI-J2534-FM (FM,Short for Ford and Mazda) l
Download IDSFord or IDSMazda

Download the latest unencumber IDS software and save it to the local.

 Select “i accept the words of the license agreement”

 Step 3: Install the latest IDS software l
Double-click on the “IDS-110.01_Full.exe” to start arrange l
Select language,and click on on on “next” button

 Select “i accept the words of the license agreement”

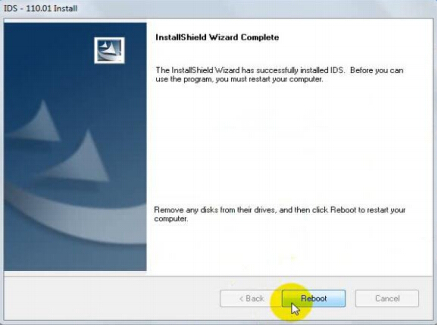

 Reboot your computer after arrange

 Step 4: Install the FVDI J2534 software l
Open compact Disc and to search out FVDI-J2534 software and double-click on the “FVDI_J2534_Ford_Setup.exe” software

 Setup FVDI J2534 language

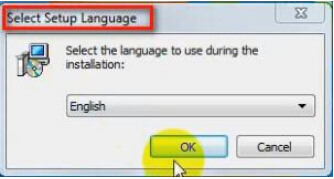

 It will arrange SVCI Based software checklist, Click on “next” immediately, and then Click on “next” all the time until it bounce a window “Select Setup Language”, which is selected the utility driver’s arrange language

 Install the FVDI J2534 driver,and click on on on “Next” all the time until arrange Shield wizard whole, and then click on on on “finish”.

 When you open FVDI J2534 for ford software after arrange, an error window will pop out. That approach you have not connect FVDI J2534 equipment at the side of your computer, as show inside the underneath. connect your utility with computer,and the FVDI J2534 software shall be opened maximum ceaselessly.

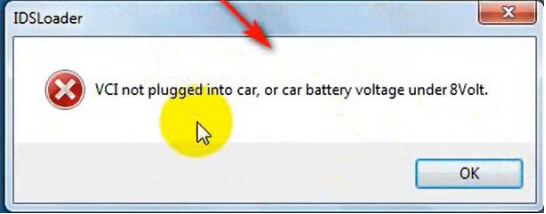

 while you put FVDI J2534 equipment to glue the computer and open the applying, it is going to pop underneath error message, it approach you do not connected car ECU module and the ECU voltage cannot not up to 8 volts. After using the OBD interface of FVDI J2534 to glue the ECU,and the applying will also be opened maximum ceaselessly and put into use.

provide: http://blog.eobdtool.co.uk/fvdi-j2534-manual-software-download-install-pcb-car-list/
