Flash Launch Easydiag ROM file by EZ-Diag Toolkit (Download)

I’ve effectively flashed any Release Easydiag ROM document by means of the use of my toolkit. Listed below are some previews.
Can clear up some consumer issues comparable to, lengthy beep connector, “truly go out” on telephone apk, some Loading… loading… drawback

Patcher is integrated.

A terminal is integrated so you’ll be able to keep in touch with tool (for analysis objective)

Almost certainly can flash different connector as smartly (want trying out) comparable to purple connector , mdiag, and so forth…

Improve easydiag to professional integrated.

Newest model is V1.3.01. Obtain hyperlink:
http://www.mediafire.com/document/xoaede2giwkszum/EZ-Diag_Toolkit.zip

V1.3.00 launched.
-flash code remodeled
-ez improve to be had
-bugfixes

Improve to professional works for my easydiag connector. Want to use Bluetooth connection. You wish to have to pair your connector with home windows first. There will likely be 2 Bluetooth serial port, the second one port works for me. Seems the USB connection can’t be used to energy tool for bluetooth serial to paintings. You wish to have to energy connector by means of different manner comparable to, use stlink/jlink to energy tool, attach the connector to obd port to your car to energy it, or you’ll be able to search for energy terminal for the connector to energy it up. The USB can handiest energy the tool after step 2 improve succeded. I choose powering it up by means of stlink connection since it’s more straightforward to do for me.

The hyperlink is within the connected document.

use.

1. Set up driving force first from this thread

EasyDiag_Driver_Setup_X32.exe and EasyDiag_Driver_Setup_X64.exe mega hyperlinks connected:

EasyDiag_Driver_Setup_X32.exe
https://mega.nz/#!8gkCgRQb!p6-HRClkrov4YGh8hrHRqZ52egHT4S-J0i0Nmrm1j_k
EasyDiag_Driver_Setup_X64.exe
https://mega.nz/#!tgsBiIJD!F-zW0ynJAroPc0DXMcDL_DGhv61lNQ4RNUozXb0Ei6s

2. Attach your connector during the usb connection for your laptop.
3. Open downloaded EZ-Diag from attachment
4. Make a choice your connector serial port and you’ll be able to select any baudrate
5. Get started use any of the purposes. It must be directly ahead simple to know

Word: I am the use of home windows 10. For older home windows you perhaps will wish to set up required redist. Now not positive which one haven’t any older home windows round. Let me know any error all the way through working the software.

In the event you stumble upon any drawback or error the use of the software, pull out the usb connection for approximately 10 sec. Put again the USB cable for your laptop and wait any other 10 sec. Must be adequate. Want to wait the connector to reset itself and boot up sooner than can use.

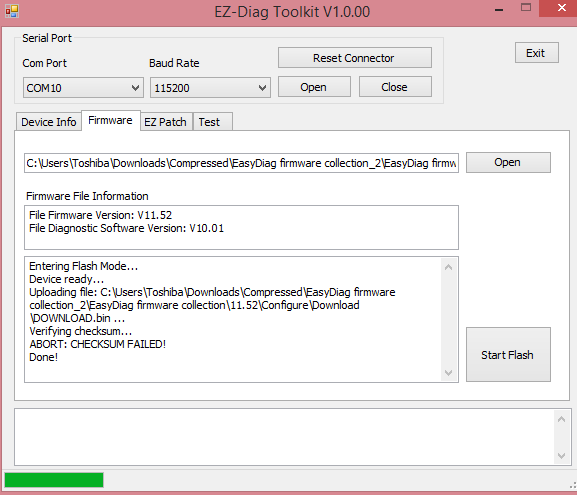

Error: Checksum failed
while you flash it this mistake comes:
Getting into Flash Mode…
Software in a position…
Importing document: G:firmware-all-072017Firmware-allFirmware 11.54DIAGNOSTICConfigureDownloadDOWNLOAD.bin …
Verifying checksum…
ABORT: CHECKSUM FAILED!
Carried out!


Do that.
1. attach iDiag to USB wait 10 sec or extra.
2. Don’t press open button
3. pass to firmware tab
4. open firmware and click on on flash.

if it nonetheless doesnt paintings, it’s most likely a unique coding at the iDiag connector. handiest approach to to find out is for you or any individual to ship me the bluetooth hci snoop log out of your telephone after you end importing a firmware to iDiag connector. Theoretically is similar for all connector

permit bluetooth hci snoop log may also be be discovered at the thread http://mhhauto.com/Thread-Hacking-LAUNCH…pid1008943 (The primary pdf attachment)

pull the document may also be discovered right here https://github.com/Freeyourgadget/Machine…/Log-Recordsdata
The document you wish to have to ship me is “btsnoop_hci.log” out of your telephone

Error:  Cannot Attach Software To Automobiles
Is That I Cannot Attach Software To Automobiles For Many Device variations , (06, 09, 11) 2018. Refer To Hooked up Picture.



Obtain easydiag apk. run it for your telephone and replace your instrument (EOBD2 ). Reproduction the cnlauncheasydiag folder from telephone for your PC. At the toolkit click on the "Easydiag serial quantity folder" and make a choice the cnlauncheasydiag9XXXXXXX which you may have copied from telephone.
In case your loose improve is over, you wish to have to have your EOBD2 folder that have been activated previous. In the event you dont have it, this patcher wont do it for you. Answer purchase activation from dealers.

You'll no longer use EOBD2 folder which you copied from other folks. It will have to be your individual EOBD2 obtain. That is your license.



Error: Easydiag no energy mild and connection failed
easydiag tool no energy mild however bluetooth paintings
give failed get connector informetion .please check out agein
in EZ-Diag Toolkit no longer learn it


Do that.
You wish to have to pair connector with home windows first. Must be simple to do since it’s only like pairing with different bluetooth tool, please glance on the internet on learn how to pair home windows to a bluetooth tool. btw how have you learnt your bluetooth is operating? In the event you sucessfully paired your tool to home windows you must see 2 new bluetooth serial port units put in. use the second one port. In case your tool doesnt illuminate when hooked up to usb port, most likely firmware is corrupted. whether it is corrupted the next step to mend it’s the use of stlink/jlink

Error: Laptop no longer see scanner
If the scanner is flashed during the DZ, the pc does no longer see the scanner. Some other scanner is wanted.

Handiest answer is to make use of stlink/jlink and revert to earlier bootloader. As soon as upgraded, usb port is disabled. However there may well be in a different way to make use of usb port however this can be a bit difficult. first you wish to have to energy the connector the use of USB. Then attach the use of apk/telephone for your connector by means of bluetooth. The USB port will then be enabled however bluetooth will likely be disabled at the connector. This implies handiest one serial port kind both USB or Bluetooth will likely be enabled in every consultation.

PROBLEM: Lifeless EasyDiag OLD SN (No mild, no beeping, no not anything…)SOLUTION:
Answer was once to:
– Open tool
– Attach it to ST Hyperlink and re flash ST Unblock which you’ll be able to to find right here…

PROBLEM : DISACCORDING errorAfter carry it to are living (now lighting fixtures are running, it’s beeping by way of automotive obd or USB) I had any other drawback and factor, and it was once that even tool is again to are living, however on every occasion you attach it to USB or OBD you get TWO FAST BEEPS, and one lengthy beep, and while you attach it to APP it will give you DISACCORDING error, even though licence and all different issues are adequate, since I had the one with on-line updates….
SOLUTION:
I’ve attempted updating and downgrading all forms of firmwares, and not anything labored, I tricky that drawback is mistaken bootloader (v1.23.001) since I’ve outdated SN tool, however I discovered that factor was once, most likely Diagnostic Device Model which was once v10.03, so the answer was once:
1) Ez Professional Improve in EZ-Diag Toolkit app, and to do this I’ve
2) Improve it to PRO by way of Bluetooth and no longer USB
3) To try this you will have to energy tool by way of St Hyperlink pins (3.3v and floor pin) that was once what I’ve finished, perhaps you’ll be able to use OBD or 12v volt to pin 16 of obd and floor to 4 or 5 pin of OBD of tool, after which simply pair your Bluetooth to PC, and you’ll to find two COM ports of Bluetooth (4 and 5 for me, and if PC acknowledges your tool as audio tool, it does no longer thoughts it’s going to paintings) and I used first one (simply test with which are you able to see tool data and use that one)
4) And simply open “EZ-Diag Toolkit” and pass to “Ez Professional Improve” and upon getting decided on COM Port simply press Improve and wait all 3 processes to complete and whoala not more 3rd lengthy beep, and the entirety works nice


little bit of replace. I used to be in a position to switch the bootloader of my tool the use of EZ-Diag Toolkit with USB connection. But if getting into boot flash mode, the connector disabled the USB interface. So I believe the use of the USB interface because of this isn’t allowed. So I hooked up the connector by way of bluetooth serial port as an alternative, there’s no drawback with this system. I believe this can be a protected measure since reseting the tool by means of USB interface will disconnect the connector totally whilst the bluetooth interface will stay the hyperlink hooked up.

So I figured that no one needs to brick his connector and the one explanation why for a boot flash is to transform the tool into the professional model. And so I’ve replicated the improve procedure, and I will be able to inform that it has the similar impact as Diagzone improve procedure however without having to login first. Principally you wish to have to pair your home windows bluetooth with the connector first after which after it detects the entirety, you’ll get 2 new serial ports which is for the connector bluetooth interface. Handiest 1 port will paintings which is the second one serial port for me.

So for the following replace, it wont be for boot flash, however as an alternative improve to professional model by means of bluetooth hyperlink which is more secure for many who does not have stlink/jlink. To energy connector simply connect with the USB port. Connecting USB port to PC will disable the bluetooth connection, so I recommend powering the tool by means of USB from a USB charger/ energy financial institution.


I wish to upload that professional model is for firmware V02.XX more recent easydiag has V10.XX, so it simply convert V10.XX tool to V02.XX. The ones older easydiag could have already a professional model connector.



Word: What’s the objective to switch the tool to “Professional”?
Easydiag is supposed for decrease finish or fundamental capability connector. Professional is supposed for the extra whole connector that have extra serve as. Simply take a look at the unique apk it has handiest fundamental funtions in comparison to professional apk. The outdated connector has decrease bootloader model, the software upgrades to 1.23.00.1 bootloader model. If you have already got this bootloader then there’s no wish to achieve this. There’s 2 recognized sorts of this bootloader. 1 is for v10.xx and v02.xx diag cushy model. V02.xx is for professional connector v10.xx is for fundamental connector. You probably have bootloader for v10.xx then you wish to have to improve to v02.xx to take away the elemental obstacles.


Cheers

Credit:
gurangax for the thread http://mhhauto.com/Thread-EZ-Diag-Toolkit
thcspb for the thread http://mhhauto.com/Thread-Hacking-LAUNCH…Diagun-Professional
svvag2000 for the thread https://mhhauto.com/Thread-EasyDiag–164078

Author: Marshmallow
