How to Download and Install FVDI J2534 Software

FVDI J2534 is also really easy to use and easy to place in. You most simple need to do two steps to Installs device.  First,arrange FVDI J2534 get began device, then arrange the original brand automotive device,For instance, Ford, Mazda, Honda, Toyota. Alternatively,
The ones device cannot be installed within the an identical laptop.  If you want to use the ones device by way of FVDI J2534 diagnostic interface, please arrange different device on different laptop techniques.
fvdi-j2534-interface-1
fvdi-j2534-interface-2
fvdi-j2534-interface-3
Supported J2534 device
Ford IDS V110
Mazda IDS V108
Toyota TIS V13.00
Honda HDS V3.102
Land Rover/Jaguar SDD2 V153
Nissan CONSULT III plus R2R V80.11
Supported ELM327 device
ELMconfig
Forscan
FOCCCUS
FF2
Easy methods to get FVDI J2534 device?
You’ll be able to get the FVDI J2534 device in two ways:
1) Default device in CD comes with the package
Get FVDI J2534 equipment device from compact disc(CD)
 Put the CD inside the laptop CD energy
 Wait a while forward of opening the CD inside the helpful useful resource manager,you’re going to see the equipment an identical device and resources.
fvdi-j2534-software
2) Download J2534 device from authentic web site:  http://flyobd.com/retailer/download-center
Apply:The device download link is at all times up to date.
For instance: download Ford/Mazda IDS
Get entry to to procure heart
 Please test in and log in
 Download FVDI-J2534-FM (FM,Transient for Ford and Mazda)
 Download IDS Ford or IDS Mazda

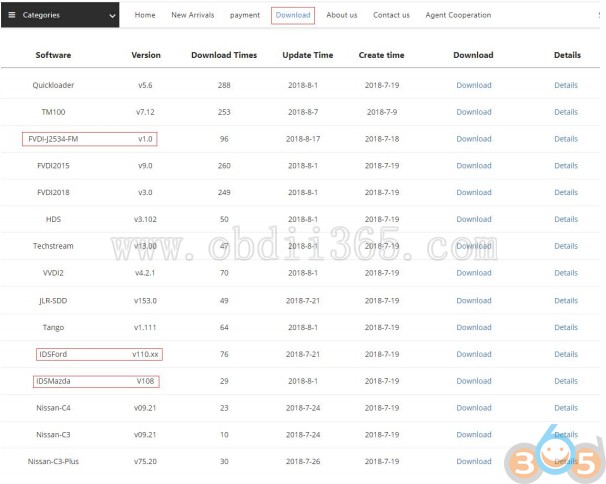

download-fvdi-j2534-software
Download the newest unlock IDS device and save it to local.
download-fvdi-j2534-software-2
Easy methods to arrange  IDS and FVDI J2534 device?

 Arrange the newest unlock IDS device
 Double-click the “IDS-110.01_Full.exe” to start arrange
 Select language,and click on on “next” button
install-fvdi-j2534-1
Wait a minute,and the following house home windows will pop out,click on on “Certain”,then click on on “next”
install-fvdi-j2534-2
install-fvdi-j2534-3
Select “i accept the words of the license agreement”, and then click on on “next”, and then click on on “next”, and then click on on “arrange”. The arrange process will take some time,please wait patiently.
install-fvdi-j2534-4
install-fvdi-j2534-5

install-fvdi-j2534-6
Reboot your laptop after arrange
install-fvdi-j2534-7
 Arrange the FVDI J2534 device
 Open compact Disc and to search out FVDI-J2534 device and double-click the
“FVDI_J2534_Ford_Setup.exe” device
install-fvdi-j2534-7
Select Setup Langeuage and Click on on “Excellent sufficient”
install-fvdi-j2534-8
 It’ll arrange FVCI Based totally completely device list, Click on on “next” straight away, and then Click on on “next” all the time untill it bounce a window “Select Setup Language”, which is selected the software driving force’s arrange language.
install-fvdi-j2534-9
 Arrange the software driving force,and click on on “Next” all the time untill arrange Offer protection to wizard complete, and then click on on “finish”.
install-fvdi-j2534-10
While you open FVDI J2534 for ford device after arrange, an error window will pop out. That suggests you have not hooked up FVDI J2534 equipment along side your laptop, as show inside the underneath. connect your software with laptop,and the FVDI J2534 device may well be opened typically.
connect-fvdi-j2534
install-fvdi-j2534-11
While you connect FVDI J2534 interface with the computer and open the device,
it will pop underneath error message, it approach you do not hooked up automotive ECU module and the ECU voltage can’t less than 8 volts. After using the OBD interface of FVDI J2534 to attach the ECU,and the device can be opened typically and put into use.
install-fvdi-j2534-12
Apply: Cannot open the IDS device on the desktop straight away,it is recommended to delete the IDS device shortcut on the desktop.
