How to install FVDI J2534 Ford IDS 110 on Windows 7

FLY FVDI J2534 interface is compatible with SAE J2534-1 and partly SAE J2534-2 software, i.e Ford/Mazda IDS, Toyota TIS, Jaguar Land rover SDD, GM GDS2, ELM327 etc.  Here’s the step-by-step guide on installing Ford IDS V110 software.
Version: Ford IDS V110.01
Operating system: Windows 7 32-bit (you can test other systems)
Function: supports Ford diagnostic & programming
What’s new: supports Ford J1850 VPW and J1850 PWM(Ford SCP) protocol
How to install FVDI J2534 Ford IDS V110.01?
Step 1: Install setup
Open software CD or download software
install-fvdi-j2534-ford-ids-v110-1
Open IDS-110.01_full setup
install-fvdi-j2534-ford-ids-v110-2
Select setup language
Installing this software will require you to restart your computer.
It is strongly recommended that you exit all Windows programs before continuting.
Press Yes to continue
install-fvdi-j2534-ford-ids-v110-3
Install Wizard for IDS
Press Next
Accept license agreement
Choose destinatian drive Disck C
Click Install

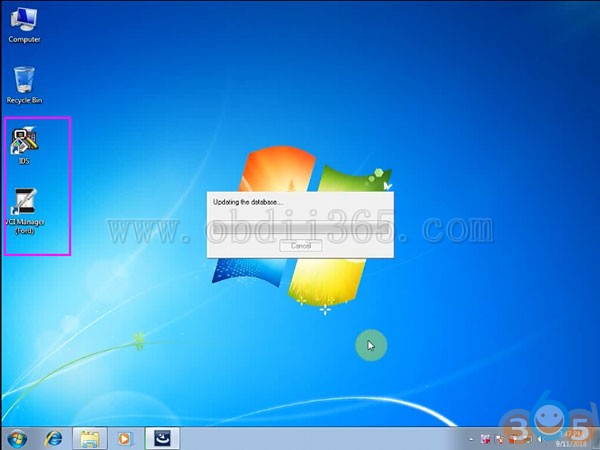

install-fvdi-j2534-ford-ids-v110-4
Install complete will generate IDS and VCI Manager program on desktop
Updating the database
install-fvdi-j2534-ford-ids-v110-5
Reboot
Step 2: Install FVDI J2534 driver
Open software folder
install-fvdi-j2534-ford-ids-v110-6
Open FVDI_J2534_Ford_Setup Run as Administrator
Select setup language
Choose destination folder
install-fvdi-j2534-ford-ids-v110-7
Select components should be installed
Press Next
Select Start Menu Folder
install-fvdi-j2534-ford-ids-v110-8
Tick all addtional tasks to perform.
Press Next
install-fvdi-j2534-ford-ids-v110-9
Installing FVDI J2534 driver

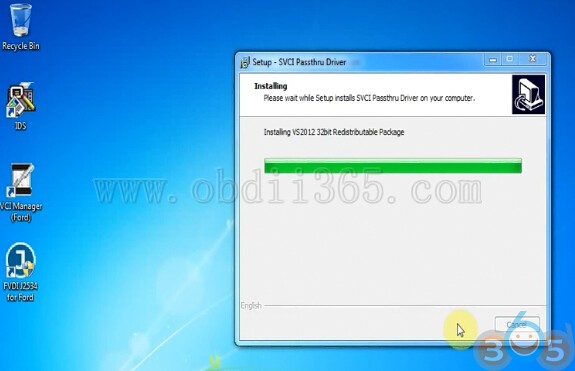

install-fvdi-j2534-ford-ids-v110-10
Installing VS2012 32bit package

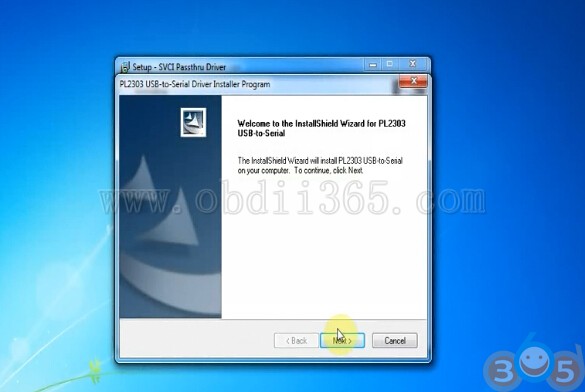

install-fvdi-j2534-ford-ids-v110-11
Install PL2303 USB to Serial Driver Installer Program
Press Next
install-fvdi-j2534-ford-ids-v110-12
Completing the SVCI Passthru Driver setup wizard
Click on Finish
Step 3: Launch FVDI J2534 Ford IDS
Delete IDS and VCI Manager to Recycle Bin
install-fvdi-j2534-ford-ids-v110-13
Install device driver software

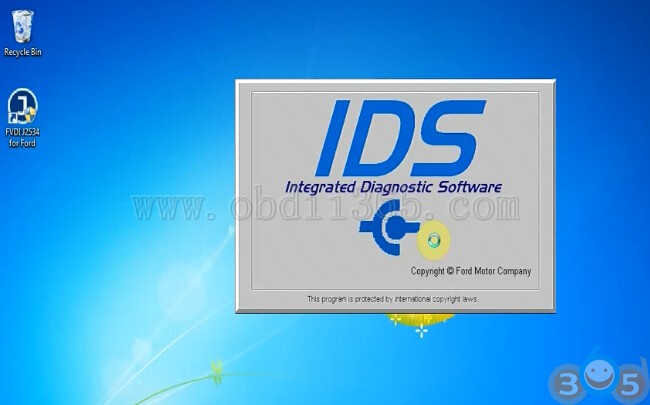

install-fvdi-j2534-ford-ids-v110-14
Open FVDI J2534 for Ford software
install-fvdi-j2534-ford-ids-v110-15
Confirm FVDI J2534 interface green LED flashes and PS switch button is pressed down.
(Note:
PS Push Switch:
Released: works as ELM327 mode
Press: works as J2534 mode )

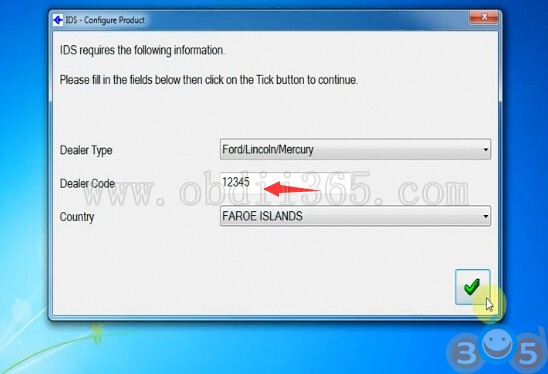

install-fvdi-j2534-ford-ids-v110-16
FVDI Ford will require to enter Dealer type, dealer code and country
Click Tick icon to continue
install-fvdi-j2534-ford-ids-v110-17
install-fvdi-j2534-ford-ids-v110-18
Now you can use Ford IDS V110 software to diagnose and program
FVDI J2534 user manual
