How to Update AUTOPHIX 7710 Ford OBDII Code Scanner Software

Autophix 7710 FD-OBDII Ford is the appropriate decision for fixing automobile problems with out going to a mechanic by means that of an auto code reader. Software can be update online for free. Here’s the guide to update Autophix 7710 software.

Maintenance Function for Ford:
Injector Quantity Adjustment
Clear Collision Data Memory
Intake Air Throttle Value Reset
Heated Exhaust Gas Oxygen Sensor Reset
Special functions for Ford, Lincoln and Mercury manufactured from 1996 to 2020:
1 PCM, Air Throttle Match
2 Oil Service Reset
3 EPB Electrical Park Brake Change
4 SAS Steering Angle Sensor Calibration
5 TCM, Auto Transmission, Gearbox
6 BMS Battery Change Reset
7 ABS Bleeding
Attention: The special features of each model are different.

How to Update Autophix 7710 Ford Scanner software?

Operating system: Windows 7/8/9
First you need to download software online
Open Update software folder

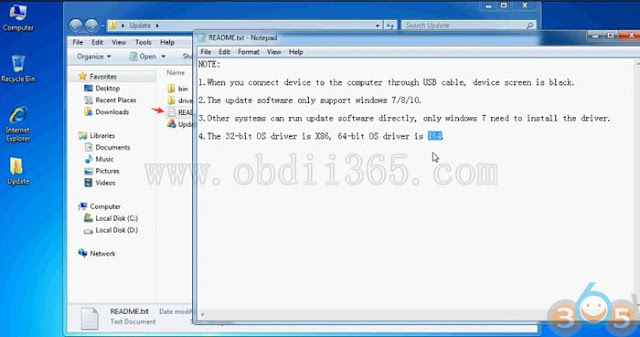

Read README.txt file before upgrade
1. When you connect device to the computer via USB cable, device screen turns black.
2. The update software can be installed on Windows 7/8/10 only.
3. Other system can run update software directly, only Windows 7 need to install software driver
4. The 32-bit O/S uses X86 driver, 64-bit O/S uses X64 driver.
Here’s installation demo on Windows 7 64-bit system

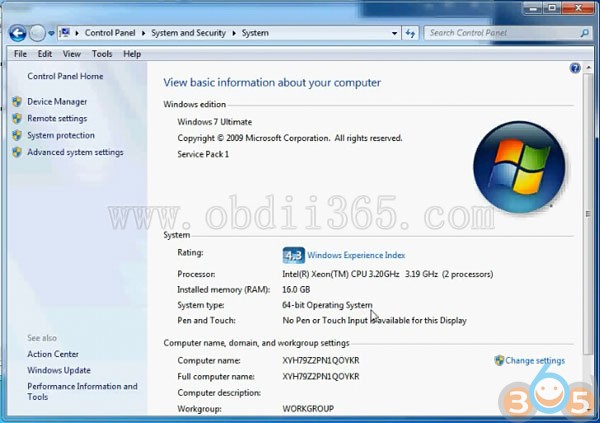

(How to check operating system: Start->Control Panel->System and Security->System)
Now connect Autophix 7710 code reader with computer via USB cable
Open Device Manager->Other devices->Right click Automotive Diagnostic Device, select Update Driver Software
Select Browse my computer for driver software
Here we need to choose driver for 64-bit system
Browser to C:/Users/Administrator/Desktop/Update/driver/x64_64bit_win7



Click on Next
If system prompts error “Windows can’t verify the publisher of this driver software”, select Install this driver software anyway.
Installing driver software…

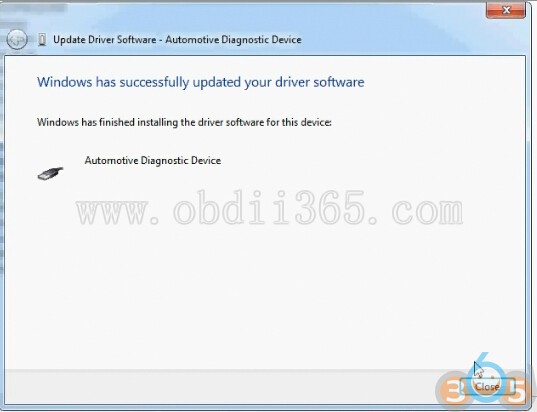

Windows has successfully updated your driver software

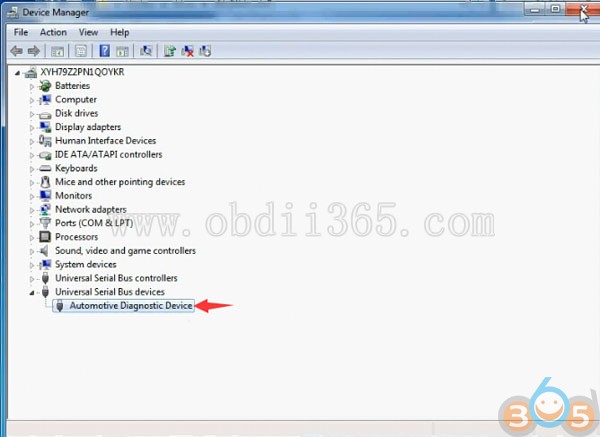

Open Device Manager to check the Automotive Diagnostic Device is well installed.
Back to Update folder

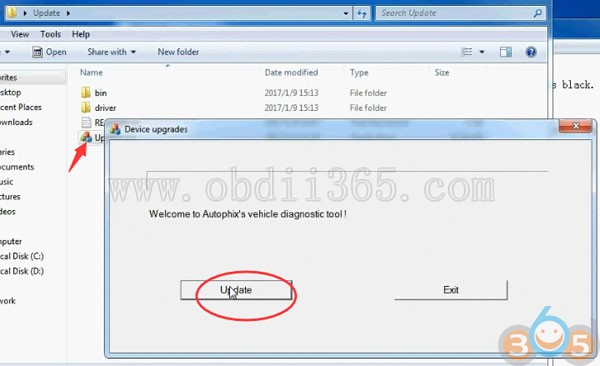

Open Update.exe
Click Update to update software until finished
Do not disconnect AUTOPHIX 7710 scan tool during the update procedure.
