Kbd-Audio – Tools For Capturing And Analysing Keyboard Input Paired With Microphone Capture

This is a collection of command-line and GUI tools for capturing and analyzing audio data. The most interesting tool is called keytap – it can guess pressed keyboard keys only by analyzing the audio captured from the computer’s microphone.

capture audio and to open GUI windows libsdl

  • FFTW3 – some of the helper tools perform Fourier transformations fftw
  • Linux and Mac OS

    git clone https://github.com/ggerganov/kbd-audio
    cd kbd-audio
    git submodule update --init
    mkdir build && cd build
    cmake ..
    make

    Windows

    (todo, PRs welcome)

    Tools

    record-full
    Record audio to a raw binary file on disk
    Usage: ./record-full output.kbd

    play-full
    Playback a recording captured via the record-full tool
    Usage: ./play-full input.kbd

    record
    Record audio only while typing. Useful for collecting training data for keytap
    Usage: ./record output.kbd

    play
    Playback a recording created via the record tool
    Usage: ./play input.kbd

    keytap

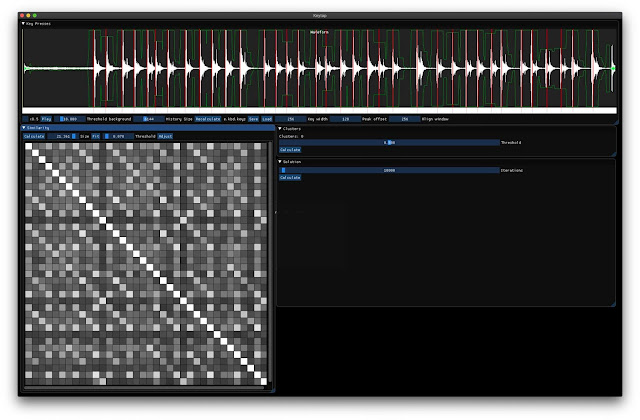

    Detect pressed keys via microphone audio capture in real-time. Uses training data captured via the record tool.
    Usage: ./keytap-gui input0.kbd [input1.kbd] [input2.kbd] …
    Live demo (WebAssembly threads required)

    keytap2 (work in progress)
    Detect pressed keys via microphone audio capture. Uses statistical information (n-gram frequencies) about the language. No training data is required. The ‘recording.kbd’ input file has to be generated via the record-full tool and contains the audio data that will be analyzed. The ‘n-gram.txt’ file has to contain n-gram probabilities for the corresponding language.
    Usage: ./keytap2-gui recording.kbd n-gram.txt

    Feedback
    Any feedback about the performance of the tools is highly appreciated. Please drop a comment here.
