Xori – An Automation-Ready Disassembly And Static Analysis Library For PE32, 32+ And Shellcode

Xori is an automation-ready disassembly and static analysis ^(http://www.kitploit.com/search/label/Static%20Analysis) library that consumes shellcode or PE binaries and provides triage analysis ^(http://www.kitploit.com/search/label/Analysis) data.
Capstone engine ^(http://www.capstone-engine.org/) and the LLVM Project ^(https://llvm.org/).

Architectures:

  • i386
  • x86-64

File Formats

  • PE, PE+
  • Plain shellcode

Current Features

  • Outputs json of the 1) Disassembly, 2) Functions, and 3) Imports.
  • Manages Image and Stack memory.
  • 2 modes:
    • Light Emulation – meant to enumerate all paths (Registers, Stack, Some Instructions).
    • Full Emulation – only follows the code’s path (Slow performance).
  • Simulated TEB & PEB structures.
  • Evaluates functions based on DLL exports.
  • Displays strings based on referenced memory locations.
  • Uses FLIRT style signatures (Fast Library Identification and Recognition ^(http://www.kitploit.com/search/label/Recognition) Technology).
  • Allows you to use your own exports for simulating the PEB.
  • Will detect padding after a non-returning call.
  • Will try to identify function references from offsets.

What it doesn’t do yet:

  • The engine is interactive.
  • Does not dump strings.
  • Does not process non-executable sections.
  • TEB and PEB are not enabled for non-pe files.
  • Only some x86 instructions are emulated, not all.
  • Patching and assembling.
  • No plugins or scripting.

Documentation ^(https://endgameinc.github.io/xori/xori/)

Requirements
rustc 1.27.0

Install rust for OSX & Linux Distros

curl https://sh.rustup.rs -sSf | sh

Install rust for Windows
First get the rustup.exe (the rust toolchain installer) from here ^(https://www.rust-lang.org/en-US/other-installers.html#other-ways-to-install-rustup). ^(https://github.com/endgameinc/xori/blob/master/readme-assests/rust-on-win.01.png)

This tool will install the rust compiler ^(http://www.kitploit.com/search/label/Compiler) rustc, the rust package manager cargo and other usefull tools for development in rust.

  • run the rustup.exe

Install rust prerequisites
in case you see this output, your Windows ^(http://www.kitploit.com/search/label/Windows) environment is missing the Build Tools for Visual Studio so keep reading, otherwise go here ^(https://github.com/endgameinc/xori#install-rust-toolchain) ^(https://github.com/endgameinc/xori/blob/master/readme-assests/rust-on-win.02.png)

  • follow the link from the output, or click here ^(https://aka.ms/buildtools)
  • cancel the rustup-init.exe
  • back in browser, scroll down, expand the tab Tools for Visual Studio 2018 & download the Build Tools for Visual Studio 2018
  • run the executable

choose the Visual C++ build tools & click “install”, close the “Visual Studio Installer” after the installation ^(https://github.com/endgameinc/xori/blob/master/readme-assests/rust-on-win.04.png)

Install rust toolchain

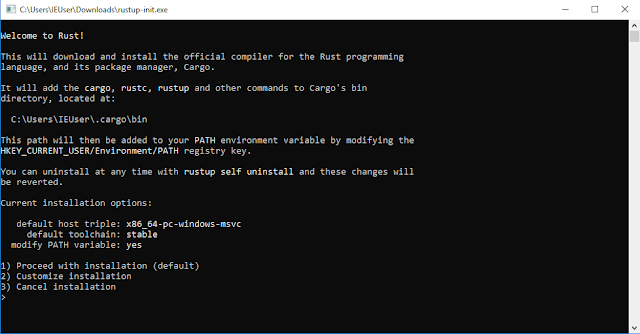

run the rustup.exe & you will see the following output ^(https://github.com/endgameinc/xori/blob/master/readme-assests/rust-on-win.05.png)

after the successful installation you can see that the rust compiler rustc, rust package manager cargo and other tools were installed (under C:Users%username%.cargo & C:Users%username%.rustup) ^(https://github.com/endgameinc/xori/blob/master/readme-assests/rust-on-win.06.png)

  • open a new “Command Prompt” & follow the xori build steps here ^(https://github.com/endgameinc/xori#1-build-xori)

Installation

1. Build Xori
This command will also create other binaries such as pesymbols ans peinfo.

git clone https://github.com/endgameinc/xori.git
cd xori
cargo build --release

2. Create xori.json config file

cp xori.json.example xori.json
[edit if desired]

3. (Optional) Build the symbols files
If you want to create your own symbol files you need to set the dll folders to where you stored your windows dlls.

"function_symbol32": "./src/analysis/symbols/generated_user_syswow64.json",
"function_symbol64": "./src/analysis/symbols/generated_user_system32.json",
"symbol_server": {
"dll_folder32": "./dlls/32bit",
"dll_folder64": "./dlls/64bit"

Run pesymbols to overwrite the function_symbol json

 ./target/release/pesymbols

Run

./target/release/xori -f test.exe

Run all tests

cargo test

Browser GUI

ChromeFirefoxSafariIEOpera
Latest ✔Latest ✔Latest ✔xLatest ✔

Requirements
nodejs
yarn (optional for UI dev)

  • On Ubuntu 18.04 you may need to apt install the following: curl git libssl-dev pkg-config build-essential npm

Build

cd gui
npm install

Run
In one terminal

cd gui
node src/server.js

In another terminal

cd gui
npm start

It will open your default browser to http://localhost:3000/ ^(http://localhost:3000/). The backend API is listening on localhost:5000.

Download Xori ^(https://github.com/endgameinc/xori)
